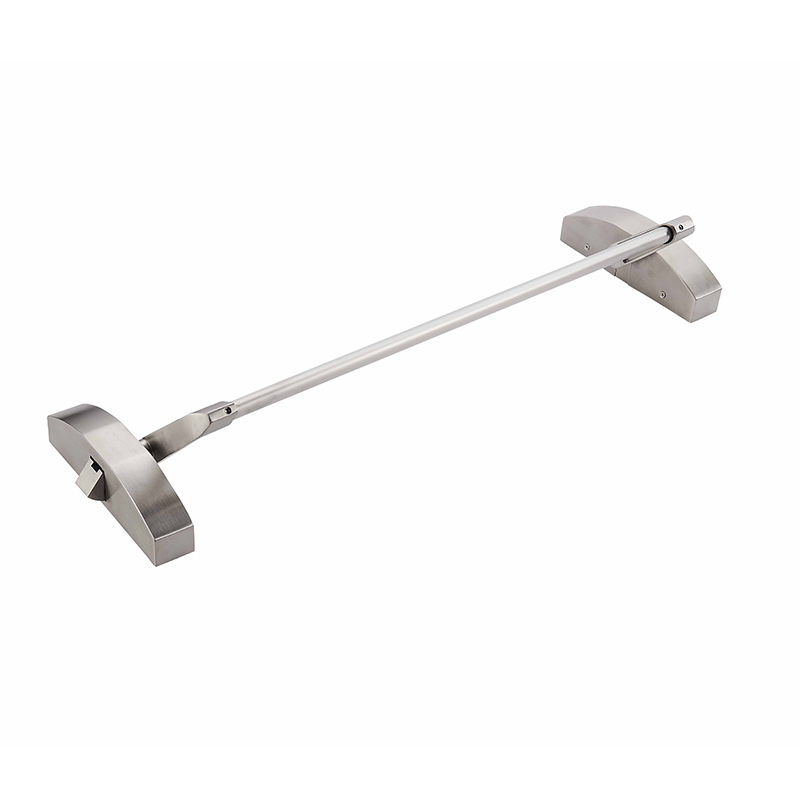

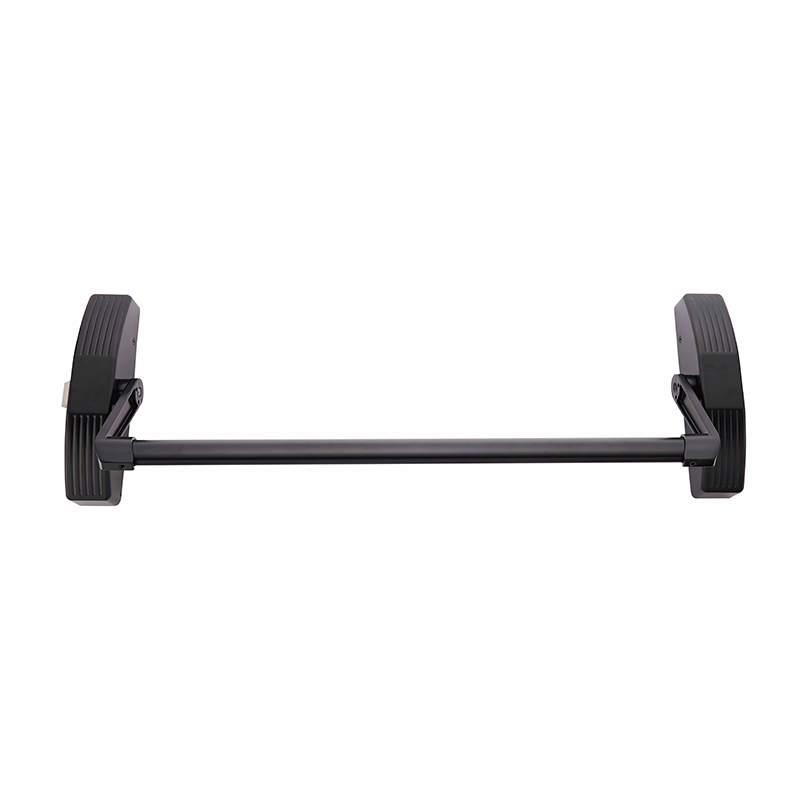

1310P/1310S – Horizontal Cross Bar Exit Device
The OUBAO 1310P/1310S commercial-grade crossbar push bar is designed for quick, hands-free emergency egress. With a single push, it unlocks the door instantly for safe evacuation. Ideal for schools, offices, and public buildings, it meets safety codes while offering reliable performance.

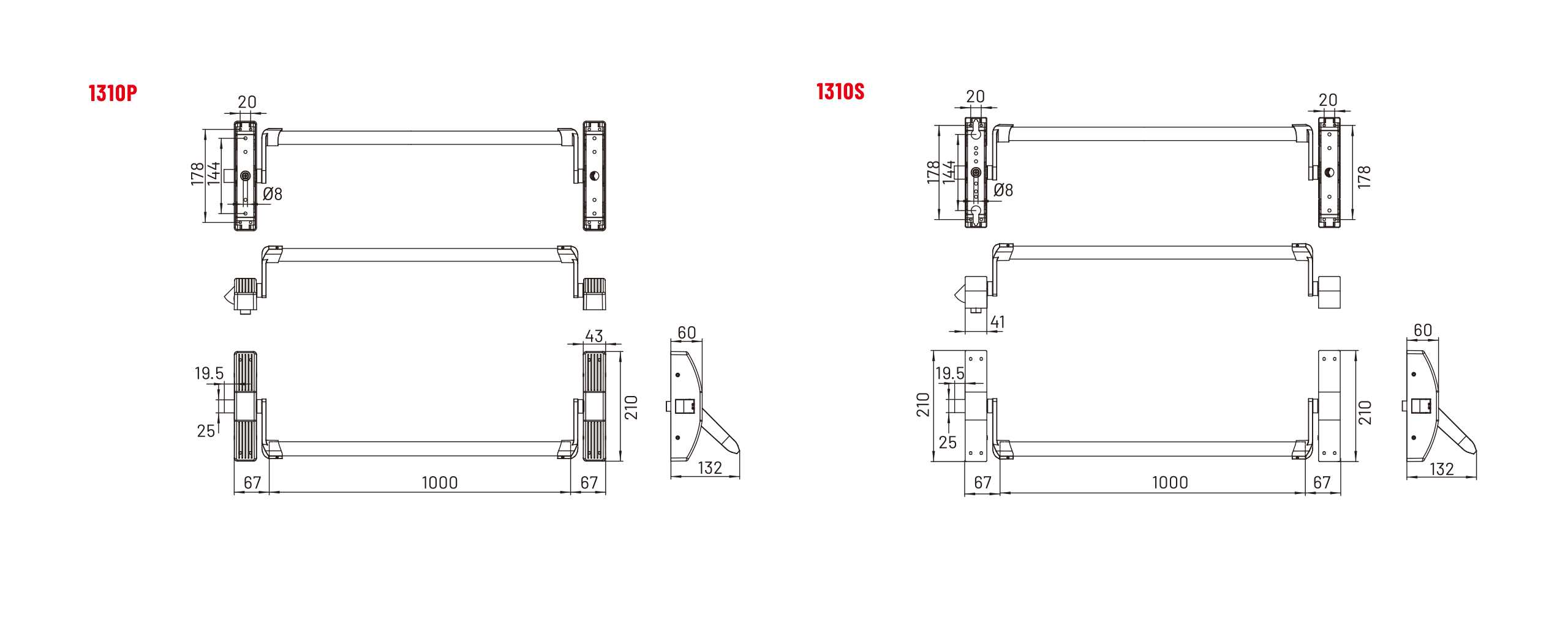

Product Parameters
| Item No. | 1310P | 1310S |
|---|---|---|
| Material | Metal body, Steel tube | SUS304 die casting cover, SUS304 body |
| Finish | Metal painted | SUS304 |
| Tube Length | 1000mm | 1000mm |
| Bolt | Metal die casting | SUS304 |
| Striker | Steel | SUS304 |
| Fire Rating & Certificate | CE certificate | CE certificate |
Application
- Non-handed for maximum flexibility
- Fixings to suit timber doors. Metal doors also available
- For single doors in buildings accessed by the public, where panic can be foreseen
- For double leaf doors with vertical touch bar in buildings accessed by the public, where panic can be foreseen
- Pressure at any tube withdraws the latch ensuring immediate release of the door
- Light touch operation
- Compatible with outside access device
- Suitable for push face of outward opening doors
