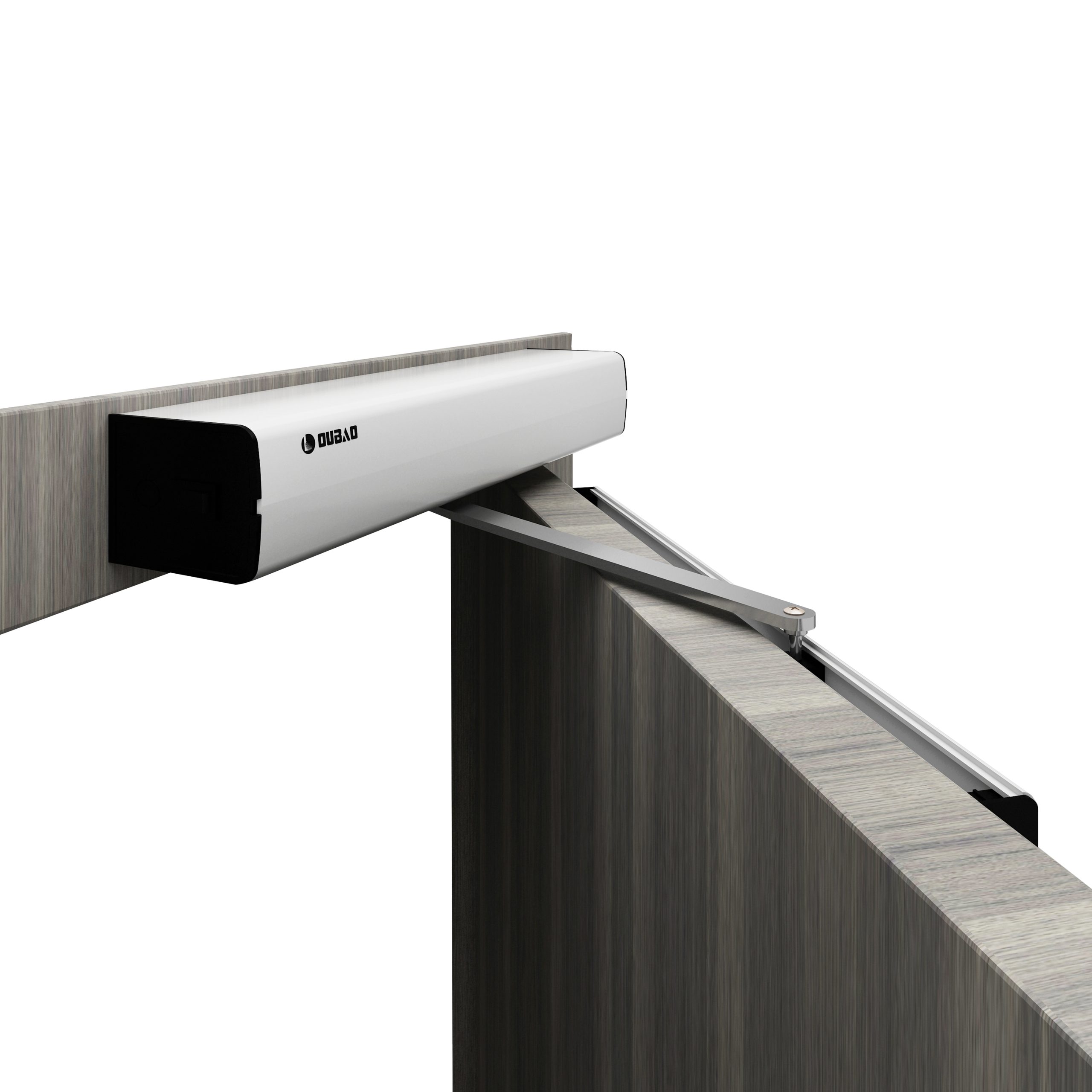

D215 – Automatic Swing Door Operator
The OUBAO D215 Automatic Swing Door Operator is a high-performance, motorized door control solution designed for commercial, public, and institutional environments. Built on decades of OUBAO’s expertise in door hardware, this compact, reliable operator automates opening and closing of single swing doors, offering seamless integration with access control systems, safety sensors, and smart building infrastructure. It delivers quiet, smooth operation, advanced safety features, and flexible configuration to meet the needs of offices, hospitals, retail spaces, and accessible facilities.
Key Features
Intelligent & Smooth Operation:
- High-efficiency DC brushless motor with soft start/soft stop technology, ensuring quiet, jitter-free door movement.
- Fully adjustable parameters: opening/closing speed, hold-open time, and closing force to suit door size and usage frequency.
- Supports continuous high-cycle operation for heavy-traffic commercial environments.
Advanced Safety Protection
- Built-in obstacle detection: the door automatically reverses direction if encountering resistance, preventing injuries and door damage.
- Optional safety sensor compatibility (infrared or microwave) for enhanced anti-pinch and anti-collision protection.
- Emergency manual release function for safe operation during power outages or emergencies.
Versatile Compatibility & Integration
- Works seamlessly with access control systems, push buttons, motion sensors, card readers, and intercom systems.
- Supports multiple trigger modes: hands-free activation, remote control, or timed access for convenience and hygiene.
- Standardized interface for integration with building automation and fire alarm systems.
Durable & Low-Maintenance Design
- Rugged aluminum alloy housing with corrosion-resistant finish, suitable for long-term indoor use.
- Compact, surface-mounted design for easy installation on new or existing doors.
- Long service life with minimal maintenance requirements, backed by OUBAO’s quality and reliability standards.
Product Parameters
| Item No. | D215 Automatic Swing Door Operator (Heavy Duty) |
|---|---|
| Size | 500*80*104mm |
| Weight | 5Kg |
| Operating temperature | -20℃~65℃ |
| Leaf weight (max.) 1-leaf | 160Kg |
| Leaf width (min.-max.) | 800-1500mm |
| Opening angle (max.) | 120° |
| Input voltage | AC100-260V |
| Motor voltage | DC 24V |
| Rated power | 120W |
| Output power | DC12V/500mA |
| Opening speed | 3.5s-15s |
| Closing speed | 3.5s-15s |
| Operating mode | Automatic, Hold-open, Release |

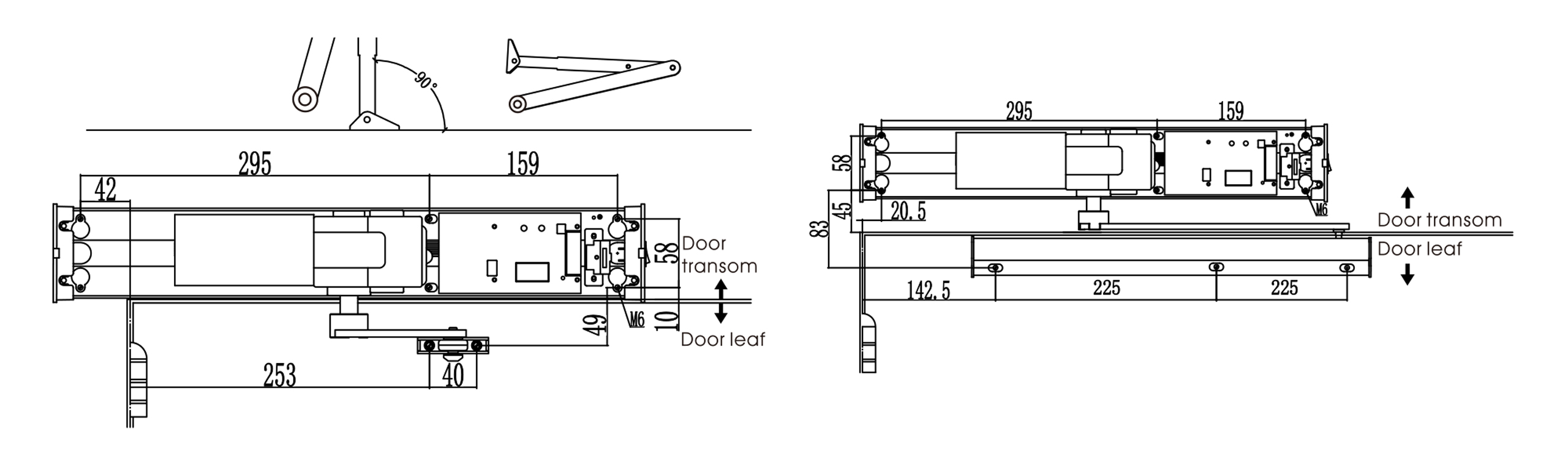

| Installation position | Door leaf, Door transom |
| Service life | 1 million cycles |
Application Scenarios
Commercial Buildings: Offices, shopping malls, hotels, restaurants and retail stores
Public Facilities: Hospitals, schools, airports, libraries and government buildings
Fire Safety: Fire doors, stairwells and emergency exit passages
Residential & Apartments: Entrance doors, common areas and multi-family housing
Industrial & Special Use: Factories, server rooms, climate-controlled spaces and high-traffic areas
